X-Pro 35000 BTU 3 Zone 22.5 SEER2 Concealed Ducted Mini Split AC

Key Features

• Adjust temperature independently across 3 zones for optimal comfort
• Inverter technology maintains steadier temperatures with smarter energy use
• R454B refrigerant supports more responsible forward-looking operation
• Built-in versatility for every situation with 7 modes and 8 fan speeds
• Enjoy peaceful sleep without distractions with sleep mode and screen off function
• Effortless convenience with smart control options and wifi connectivity

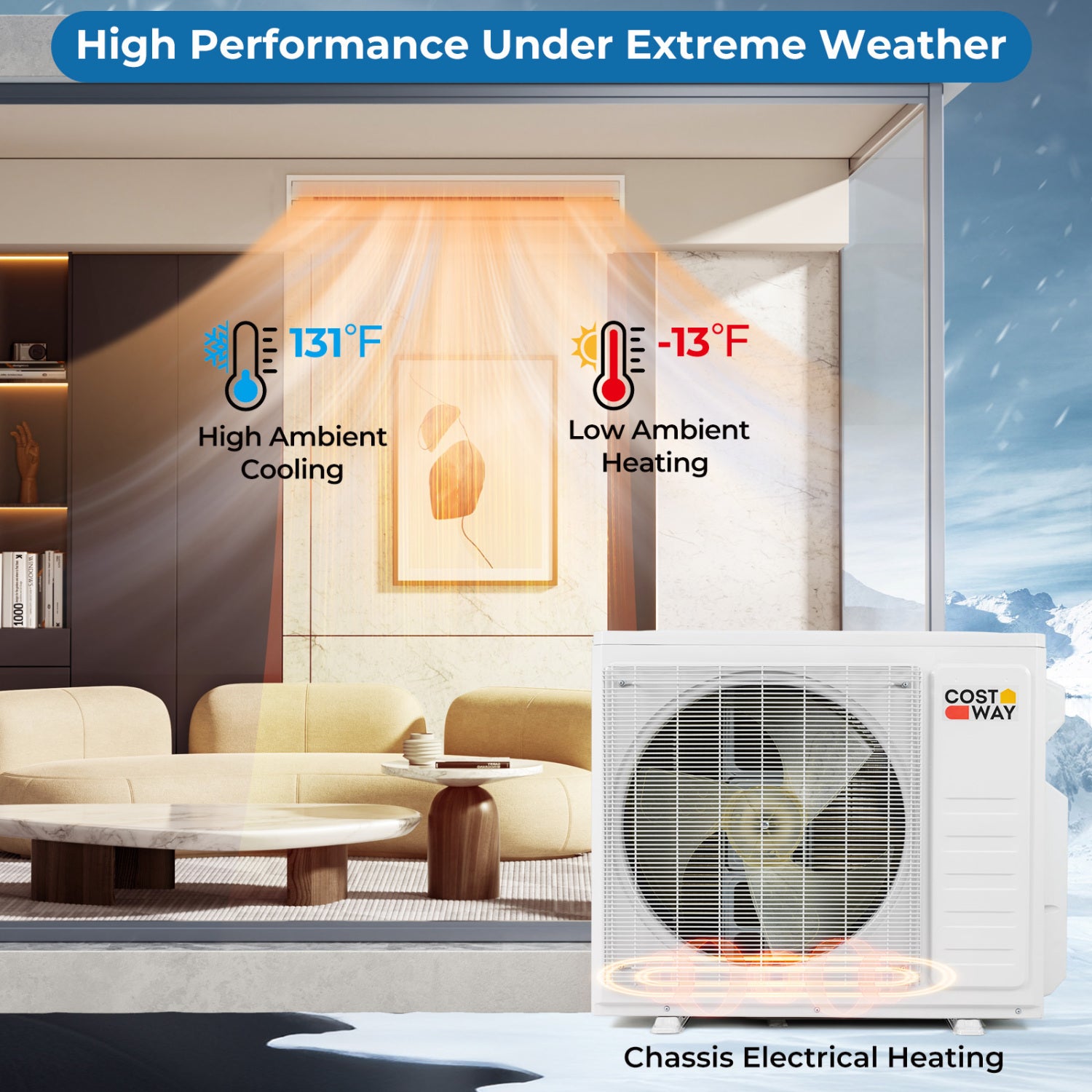

• Chassis electrical heating ensures reliable performance in colder conditions
• Ideal for homes offices and light commercial spaces
• 4D auto swing for balanced and even air distribution
• Ducted design keeps your space neat and discreet
• Self-clean function makes maintenance a breeze
• 24-hour timer for set-and-forget scheduling
• Child lock helps prevent unwanted changes

Specifications

• Color: White

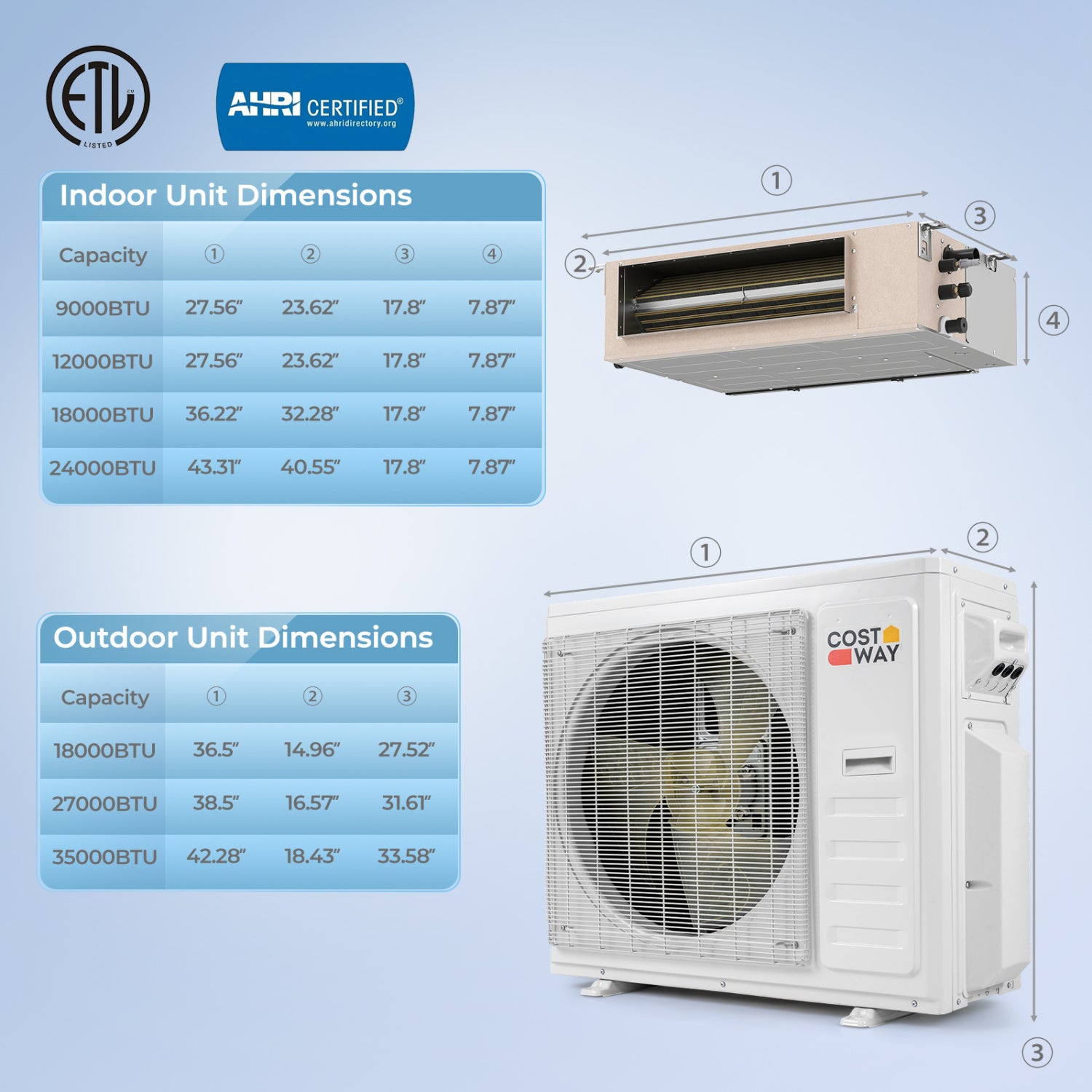

• Material: Cold-rolled Steel Sheet Copper Aluminum Indoor Unit Dimensions . 9K 27.56" x 17.8" x 7.87" 12K 27.56" x 17.8" x 7.87" 18K 36.22" x 17.8" x 7.87" 24K 43.31" x 17.8" x 7.87" Outdoor Unit Dimensions . 18K 36.5" x 14.96" x 27.52" 27K 38.5" x 16.57" x 31.61" 35K 42.28" x 18.43" x 33.58" Multi Zone Combination 3
• Voltage: 208-230V Frequency 60Hz Temperature Setting Range 60℉~88℉ Refrigerant R454B Indoor Unit Noise Level 28 dB Max Remote Control Distance 39.2 ft Coverage Area-9K 450 Sq.Ft Coverage Area-12K 750 Sq.Ft Coverage Area-18K 1250 Sq.Ft Coverage Area-24K 1500 Sq.Ft Dehumidification Capacity-9K 55.8 Pints/Day Dehumidification Capacity-12K 81.2 Pints/Day Dehumidification Capacity-18K 111.6 Pints/Day Dehumidification Capacity-24K 131.9 Pints/Day Maximum Air Flow Volume-9K 335 CFM/570 m³/h Maximum Air Flow Volume-12K 360 CFM/610 m³/h Maximum Air Flow Volume-18K 500 CFM/850 m³/h Maximum Air Flow Volume-24K 741 CFM/1260 m³/h 18K SEER2 24 27K SEER2 24 35K SEER2 22.5 18K HSPF2 10.5 27K HSPF2 10.5 35K HSPF2 10 Diameter of Liquid Pipe 1/4" Diameter of Gas Pipe-9K 3/8" Diameter of Gas Pipe-12K 3/8" Diameter of Gas Pipe-18K 1/2" Diameter of Gas Pipe-24K 5/8"
• Net Weight: of 18K(Outdoor Unit) 92.6 lbs

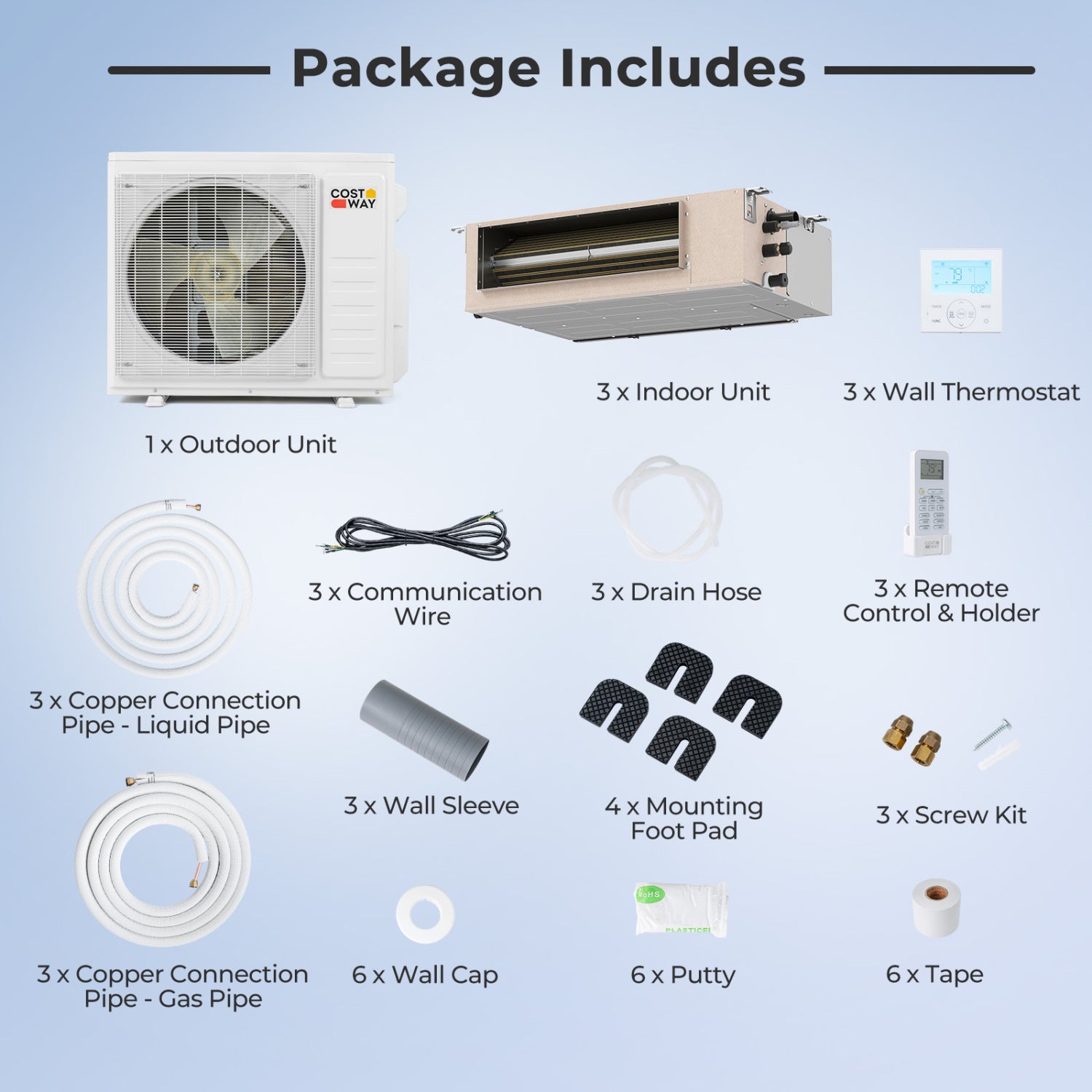

• Package Includes: 1 x Outdoor Unit 3 x Indoor Unit 3 x Copper Connection Pipe - Gas Pipe 3 x Copper Connection Pipe - Liquid Pipe 3 x Communication Wire 3 x Drain Hose 3 x Remote Control & Holder 3 x Wall Thermostat 3 x Wall Sleeve 6 x Tape 6 x Putty 3 x Screw Kit 6 x Wall Cap 4 x Mounting Foot Pad 7 x User Guide
